CEED2023Q17·msq·Hard103 attempts

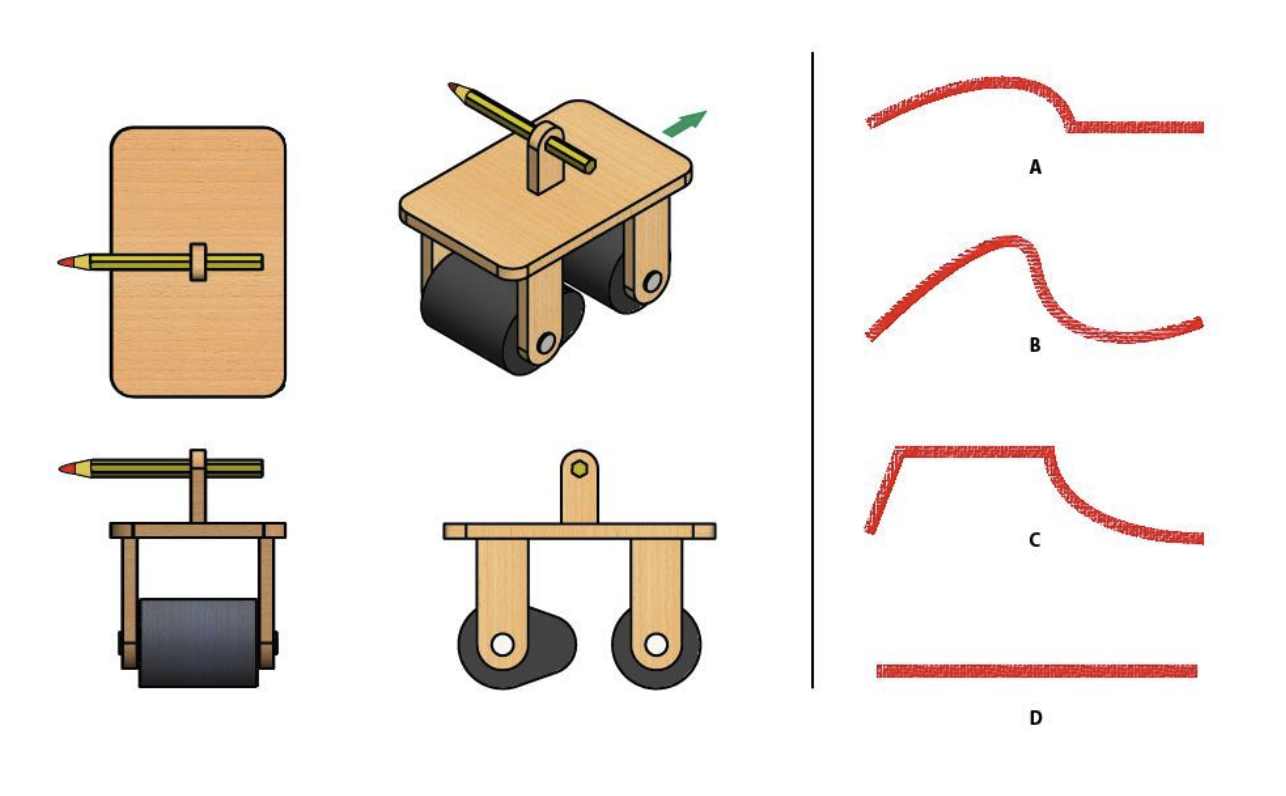

The toy shown in the figure is pushed in the direction of the green arrow as the pencil makes a mark on a wall beside it. Which of the mark(s) in the options can NEVER be made by the pencil?
This is an MSQ question. One or multiple answers can be correct.
