Q8.A pin is connected perpendicular to the centre of a circular disk as shown. A little push will make it roll over a grey circle. How many turns does it take to come back to its original position?

Q10.The options show schematics of four different versions of a foot operated hand sanitizer dispenser. Which schematic(s) will work as intended?

CEED2023Q9·msq·Hard271 attempts

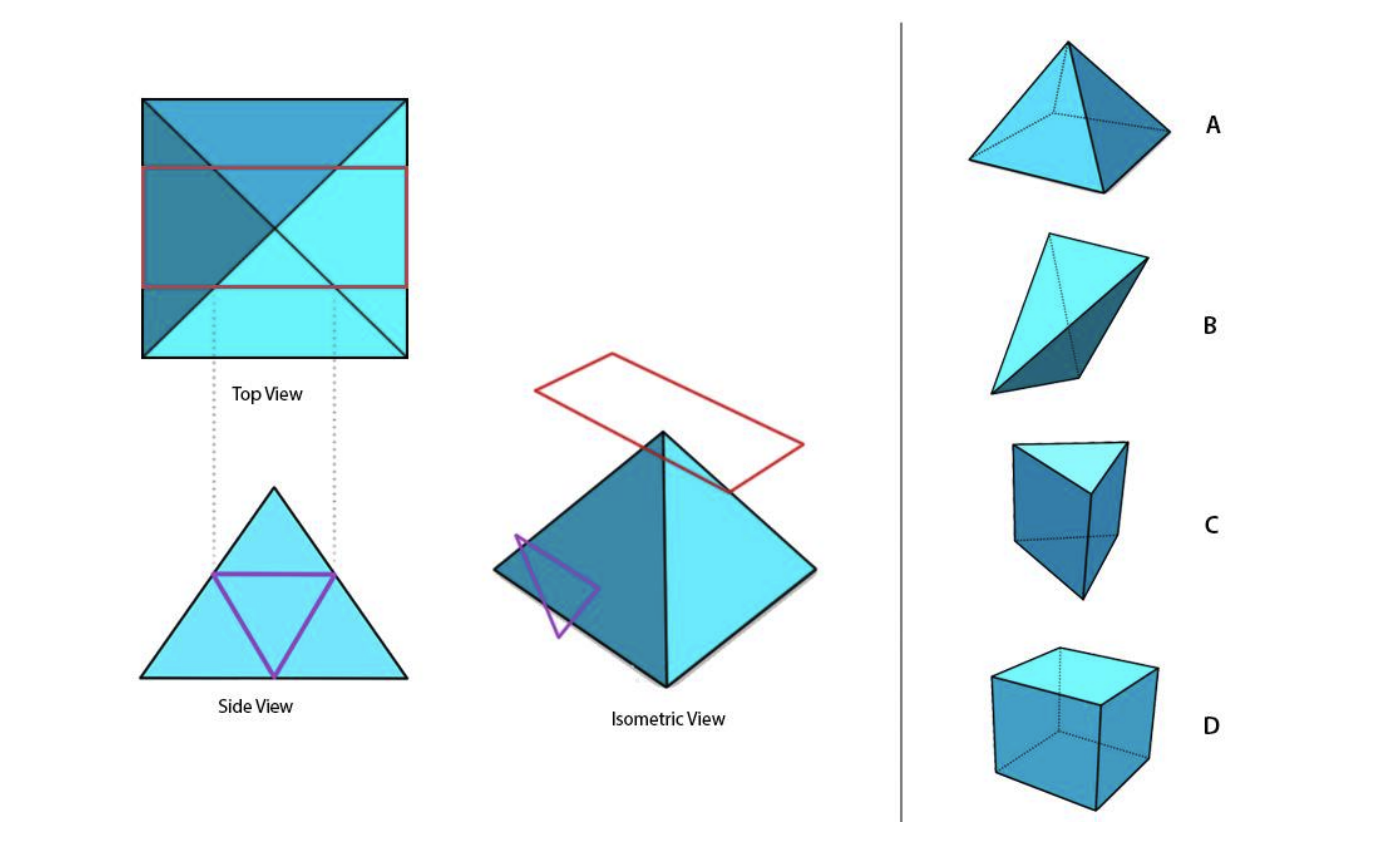

The figure shows a square pyramid that will be cut into multiple solids by extending the purple and red shapes. Select the solids that will result from the cuts.

This is an MSQ question. One or multiple answers can be correct.
