Q15.Find out the correct option(s) which can be used to create the image on the left. You can duplicate, rotate and reflect these options to achieve the same.

Q17.The toy shown in the figure is pushed in the direction of the green arrow as the pencil makes a mark on a wall beside it. Which of the mark(s) in the options can NEVER be made by the pencil?

CEED2023Q16·msq·Hard105 attempts

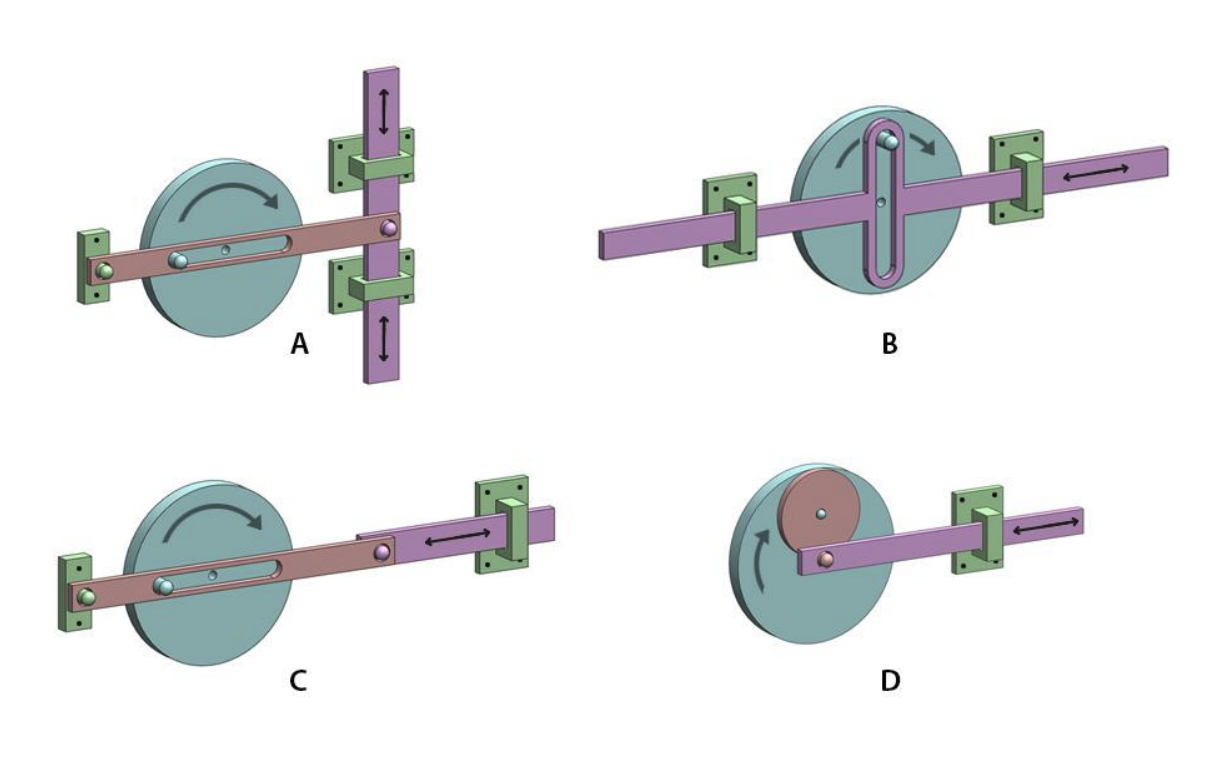

Which option(s) will result in linear motion (shown by straight arrows) of the plunger when the wheel is rotated?

This is an MSQ question. One or multiple answers can be correct.
