UCEED2019Q11·nat·Medium

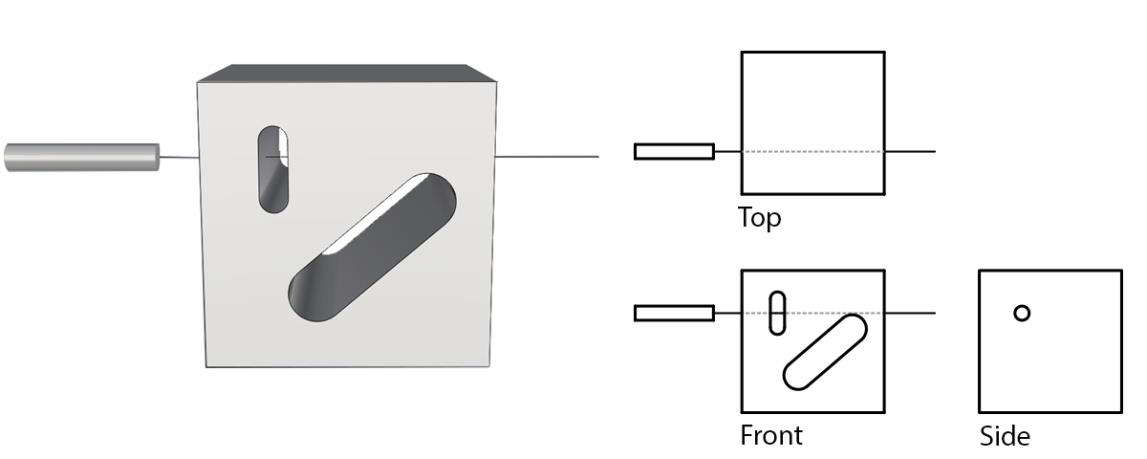

A solid is drilled using a cylindrical drill in a direction, as shown below. How many surfaces will the solid have after the drilling is complete?
