CEED2022Q39·mcq·Hard56 attempts

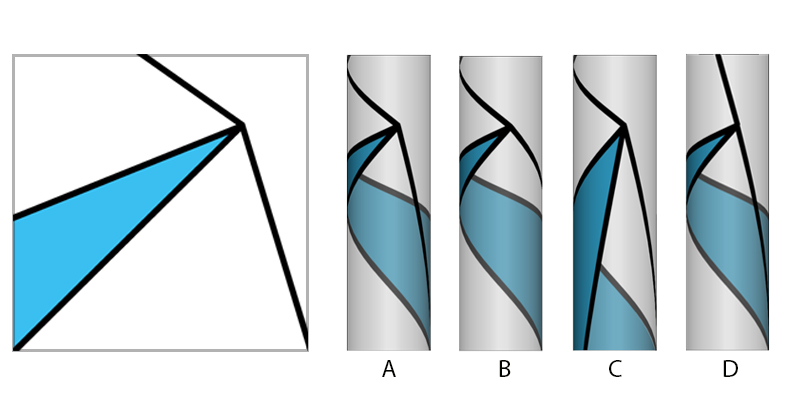

A printed transparent sticker (as shown on the left) is applied onto a glass cylinder such that the vertical edges meet. Which option is the correct representation?
