CEED2022Q22·mcq·Medium

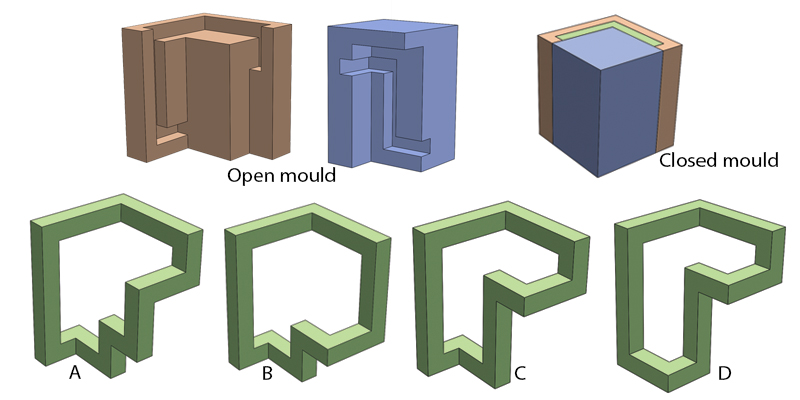

Shown below are two parts of a mould. Mould is closed and material is poured into the cavity. What would be the resultant moulded part?
