CEED2021Q41·mcq·Medium

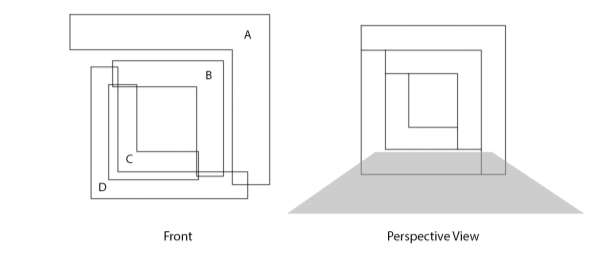

Four transparent planes A, B, C and D are shown in front view on the left. But when viewed in perspective, they appear like the image shown on the right. Which plane is the farthest from the viewer?

Four transparent planes A, B, C and D are shown in front view on the left. But when viewed in perspective, they appear like the image shown on the right. Which plane is the farthest from the viewer?
