Q39.The figure shows perspective views of the same solid object. Which option shows the count of the total number of surfaces?

Next

Q41.Four transparent planes A, B, C and D are shown in front view on the left. But when viewed in perspective, they appear like the image shown on the right. Which plane is the farthest from the viewer?

CEED2021Q40·mcq·Hard45 attempts

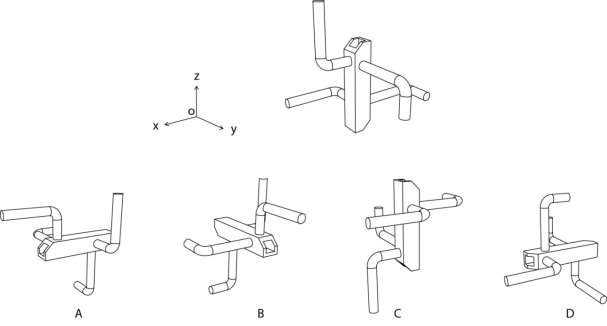

Perspective view of an object is shown below. The object is successively rotated 180 degrees clockwise about x-axis, 90 degrees clockwise about y-axis and 90 degrees anticlockwise about z-axis. All rotations have to be viewed from a point on the positive axis facing towards the origin. Which one of the following perspective view options will be the result of the rotations?
