UCEED2023Q45·mcq·Hard

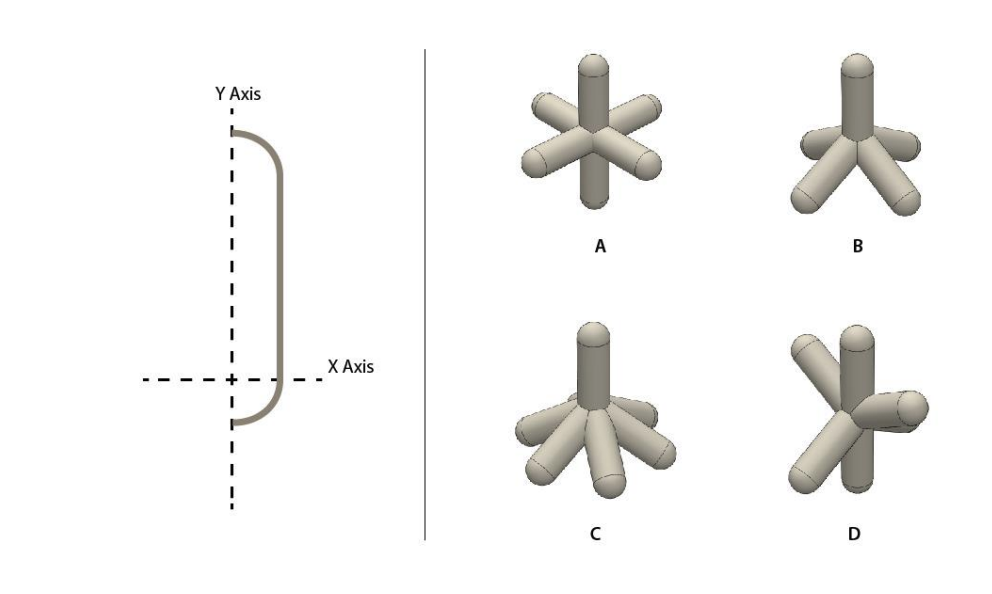

The following operations are done on the curve shown in the figure. 1. The curve is revolved 360 degrees around the Y axis. 2. The resulting form is then cloned twice around the X axis at 120 degrees to each other. 3. The resulting form is then cloned once about the Y axis at 90 degrees. What is the resulting 3D form?

The following operations are done on the curve shown in the figure. 1. The curve is revolved 360 degrees around the Y axis. 2. The resulting form is then cloned twice around the X axis at 120 degrees to each other. 3. The resulting form is then cloned once about the Y axis at 90 degrees. What is the resulting 3D form?
