Q40.Perspective view of two identical hollow cylinders is shown below. Assume the outer diameter and length of each cylinder are equal. The two cylinders intersect each other at 90 degrees to form a union, such that their centroids (centre of axis) coincide. How many visible surfaces will the resultant union have?
Next →
Q42.A hollow cylinder is lit by sunlight at 45 degrees as shown on the left. If seen from a fixed point, which option is the closest representation of the lit area inside the cylinder?
CEED2026Q41·mcq·Hard

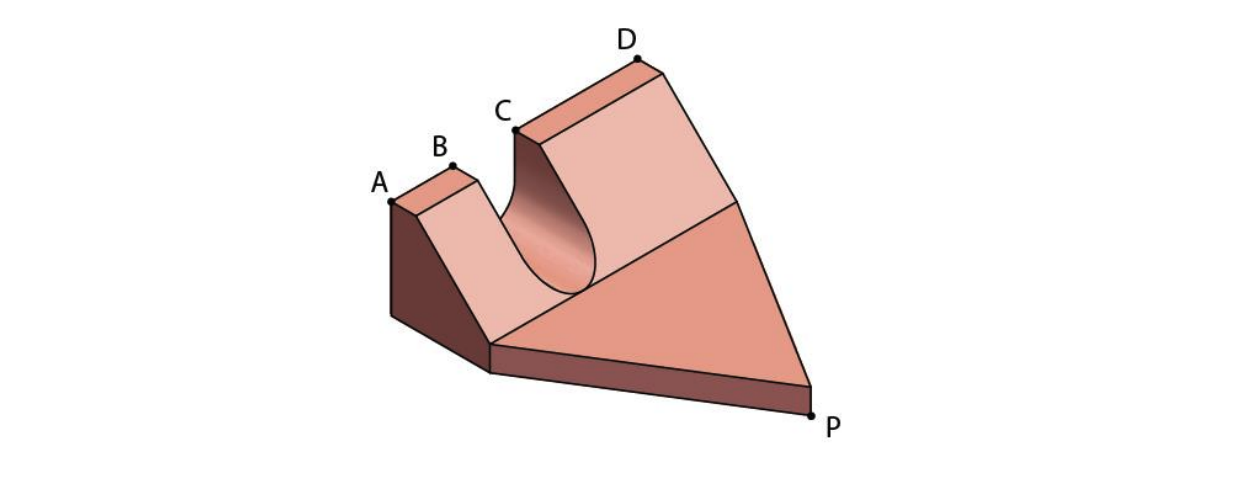

Isometric view of a solid copper object is shown below. If a constant heat source of 100 degrees C is applied at the point P continuously, which point on the solid will reach the temperature of the heat source the earliest? Neglect heat losses and assume point P lies on an equilateral triangle.
