CEED2025Q41·mcq·Hard73 attempts

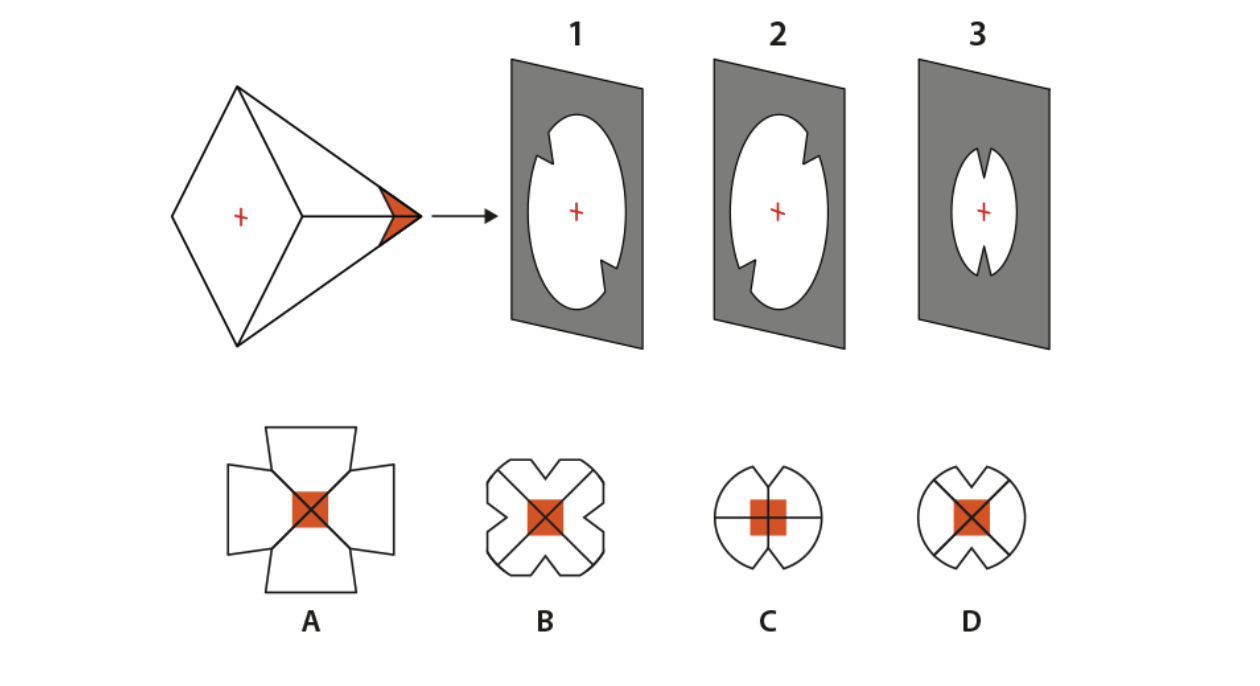

A square pyramid sequentially passes through three cut-outs, namely, 1, 2 and 3, without changing its orientation. Each cut-out has a circle with notches as shown. The cut-outs scrape off parts of the pyramid as it passes through them. Which option shows the CORRECT Side View of the remaining part of the pyramid at the end of the sequence?
Note: This question was dropped by the examiners. +3 marks were awarded to all candidates.
