Q6.Two perspective views of the same solid object are shown below. How many surfaces does the object contain? Assume hidden surfaces to be flat.

Q8.A solid is shown in the figure below. The vertices ABCDEFGH form a 4 cm × 2 cm × 2 cm cuboid. The segments AI and DI are both of length 5 cm, and points ICGFB are coplanar. What is the height (in cm) of point I from the base rectangle EFGH?

CEED2019Q7·nat·Hard129 attempts

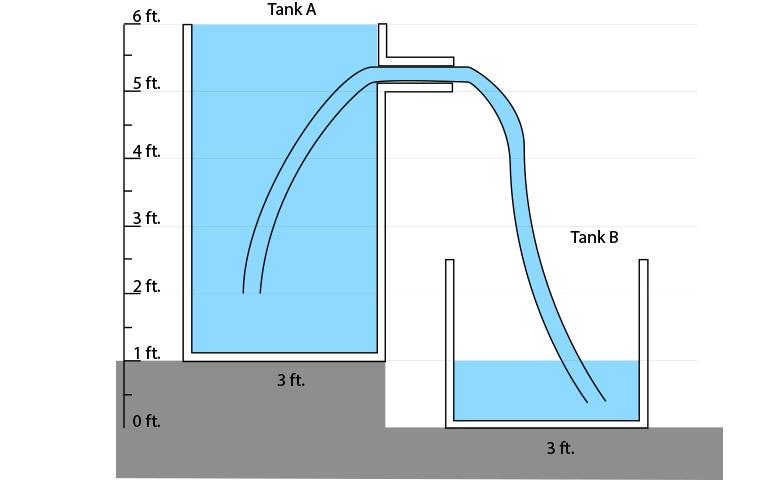

Two water tanks A and B of equal square base of sides 3 feet are shown below. Water flows from tank A to tank B through a tube. What will be the volume (in cubic feet) of water in Tank A when the water stops flowing?

Your answer
