UCEED2016Q34·msq·Medium80 attempts

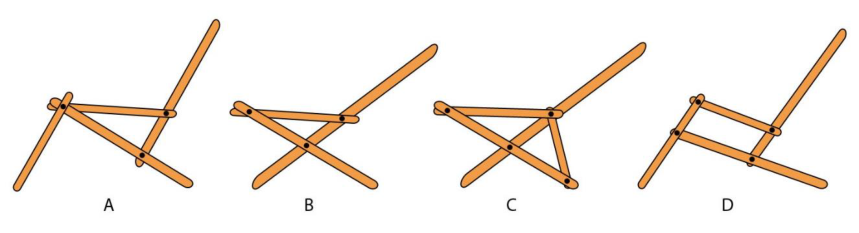

Shown in the image are schematic diagrams of folding chair structures. If the black dots indicate a hinged joint, identify the structure(s) that will work as a folding chair.

This is an MSQ question. One or multiple answers can be correct.
